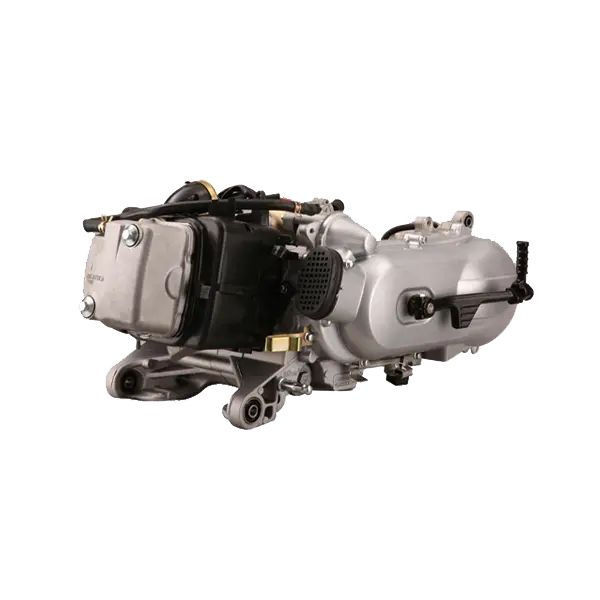

The SK Honda 100 engine, which is a single-cylinder four-stroke, forced air-cooled, horizontally arranged motorcycle engine. Its main technical parameters are as follows:

1. Bore and piston stroke The cylinder bore of the engine is 50mm, the piston stroke is 52mm, and the displacement is 101.7 cc. Such a configuration can provide higher power and torque output, but also help control fuel consumption.

2. Rated power and torque The rated power of the engine is 5.2kW/8000r/min, and the rated torque is 6.5N·m/6500r/min. These parameters reflect the power of the engine, which can meet the needs of daily riding.

3. Minimum fuel consumption rate The minimum fuel consumption rate of this engine is 367g/kW·h, which means that under the same output power, this engine has higher fuel economy than traditional motorcycle engines.

4. Fuel and oil grades The engine can use unleaded gasoline with an octane number above 90. The engine oil grade is SF15W/40 GB11121-1995, which can meet the lubrication and cooling requirements of the engine.

5. Ignition method and carburetor model The engine adopts CDI non-contact ignition technology, which can provide more accurate and stable ignition, thereby improving engine performance. The carburetor adopts PD20 vacuum membrane carburetor, which can realize uniform injection and mixing of fuel and improve combustion efficiency. To sum up, the SK Honda 100 engine has the characteristics of strong power, fuel economy, and stable ignition, and is suitable for the drive system of low-to-medium power motorcycles.
