G02

Short Description:


Product Detail

Product Tags

Length×Width×Height(mm) 1720*70*105
Wheelbase(mm) 1240
Min.Ground Clearance(mm)  140mm
Seating Height(mm)  750mm
Weight 58KG
Battery Lithium Removable Battery
Battery Type LiFePO4
Motor Power 500W
Peaking Power 800W
Battery Capacity 48V/24AH ,48V/30AH
Range 70-80KM
Charger Voltage 110V/220V
Charger Currence 3AH
Charging time 7 hours
Max Climbing ≥  12 °
MAX torque  72 NM
Front Shock Absorber Oil Damping Direct Acting Shock Absorber
Rear Shock Absorber Spring Shock Absorber
Front/RearTire Spec 3.00-10
Brake Type  F: Disc  R: Drum
Max Payload 100kg

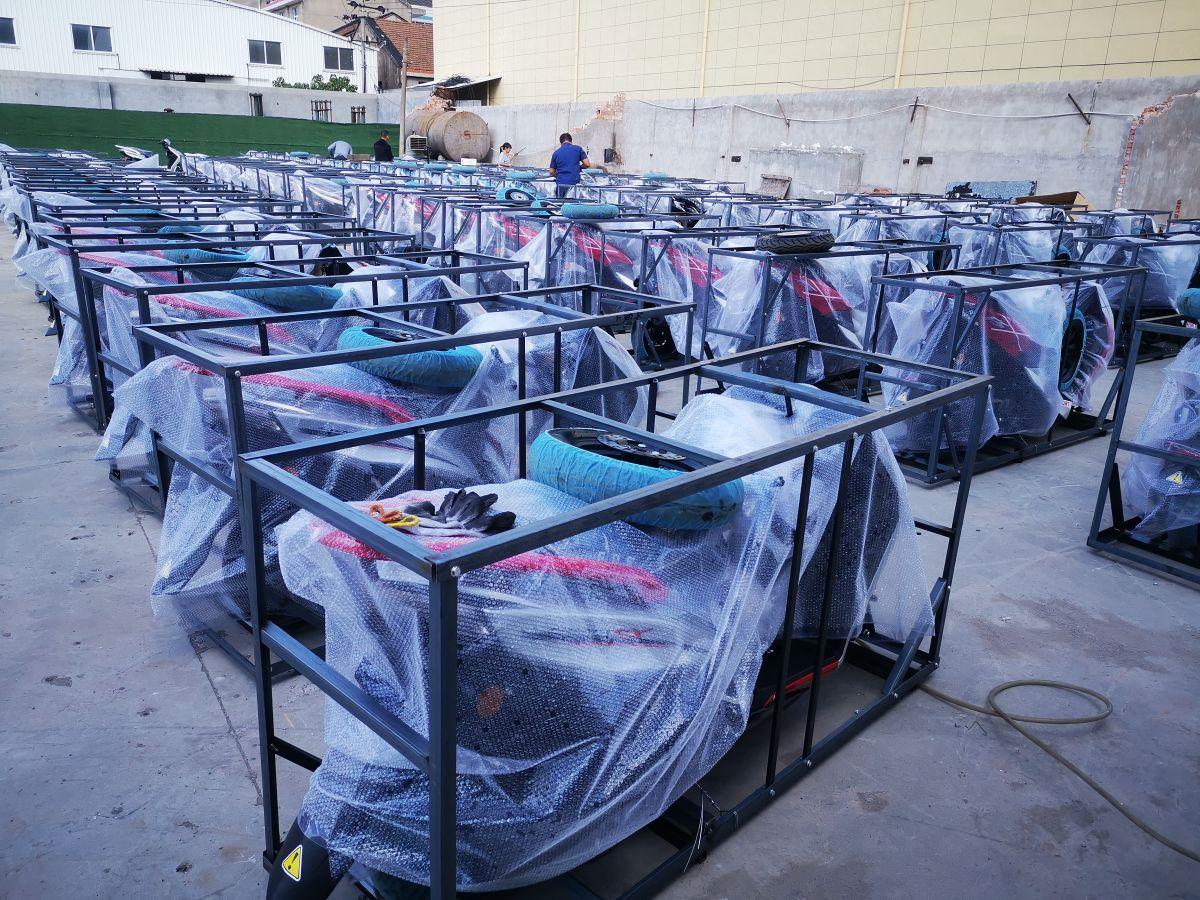

Packing QTY: SDK:1.48*0.38*0.83/144PCS,CBU:1.48*0.52*1.10/64 PCS
Standard : USB Charing port,ALARM, TOPCASE
Electrical System
LED Headlinght
LED Turning Light
LED Tail Light
LED Braking Light
LCD Dashboard
