4 seater golf cart with gas Manufacturer Off Road New style 200cc Golf Carts Disc Brake

ADV

Product parameters Recommended Models Store

4 seater golf cart with gas Manufacturer Off Road New style 200cc Golf Carts Disc Brake Featured Image

Product parameters

Engine type	161QMK（180cc）
Fuel mode	INJECTION
Rated power	8.2KW/7500r/min
Rated torque	9.6Nm/5500r/min
Fuel tank capacity	12L
Drive	RWD
Top Speed	25 MPH 40km/h
Cooling	Air Cooling
Battery	12V35AH Colloidal dry battery
Overall Length	120 in. 3048mm
Overall Width	53 in. 1346mm
Overall Height	82 in. 2083mm
Seat Height	32 in. 813mm
Ground Clearance	7.8 in. 198mm
Front Tire	23 x 10.5-14
Rear Tire	23 x10.5-14
Wheelbase	65.7 in. 1669mm
Dry Weight	lbs 660kg
Front Suspension	Independent MacPherson Strut Suspension
Rear Suspension	Swing Arm Straight Axle
Front Brake	Hydraulic Disc
Rear Brake	Hydraulic Drum
Colors	Blue, Red, White, Black，SILVERY

Product Introduction

200cc built-in reverse and continuously variable transmission engine, three gears (forward, neutral, reverse) with 14 inch aluminum alloy wheels, color LCD instrument panel, folding armrests on both sides, folding rearview mirrors, LED headlights, tail lights, daytime running lights, turn signals, extended roof, rear backrest seat kit, cup holder, high-end center console

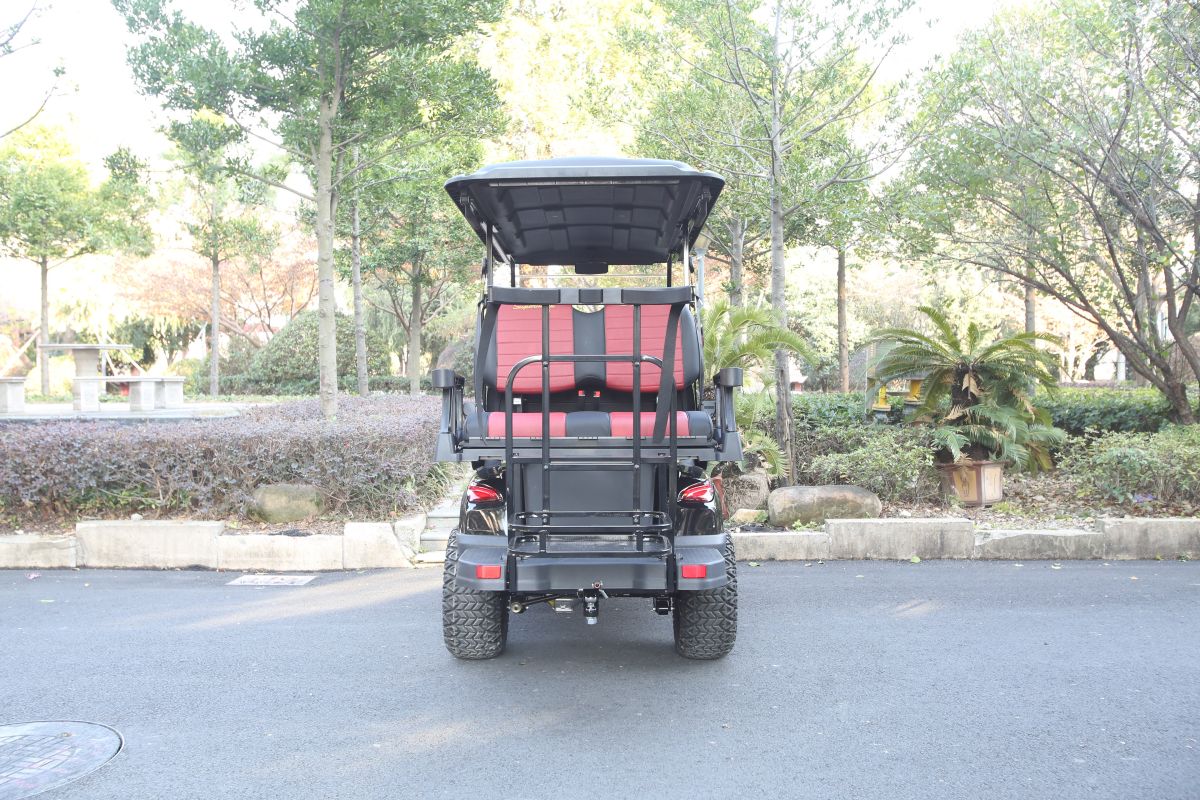

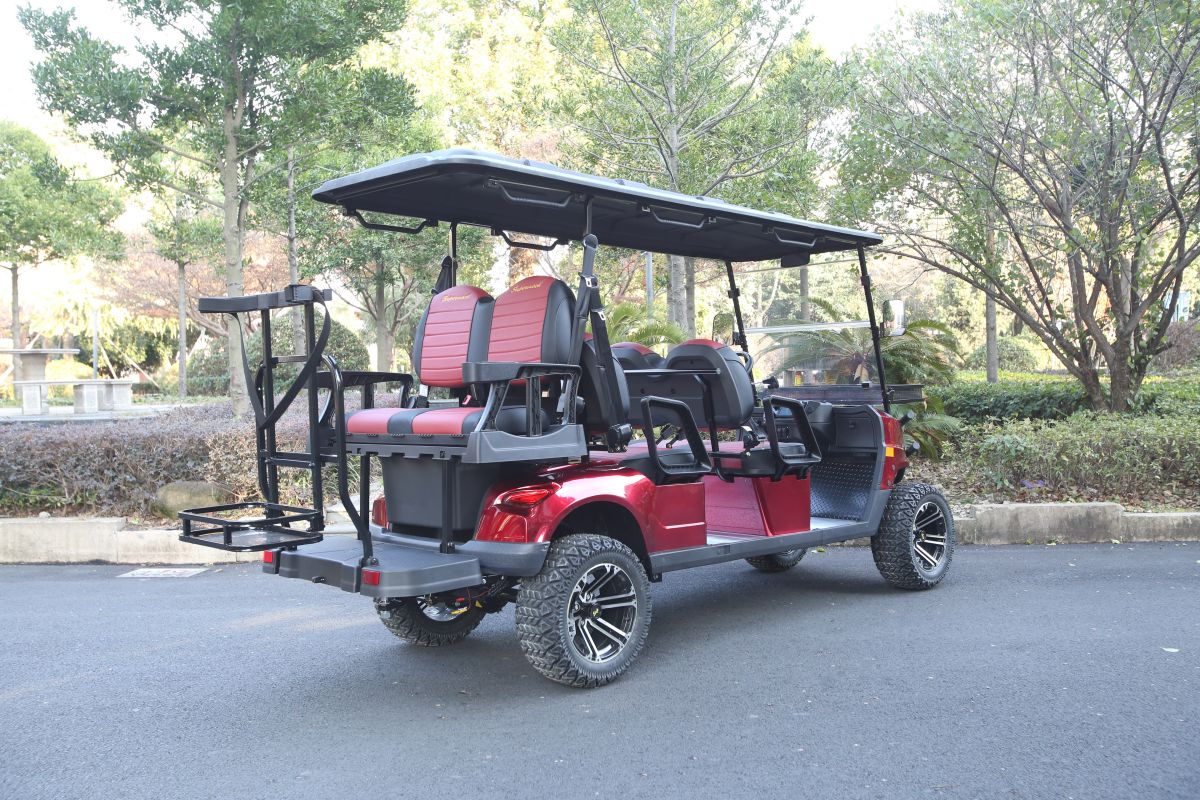

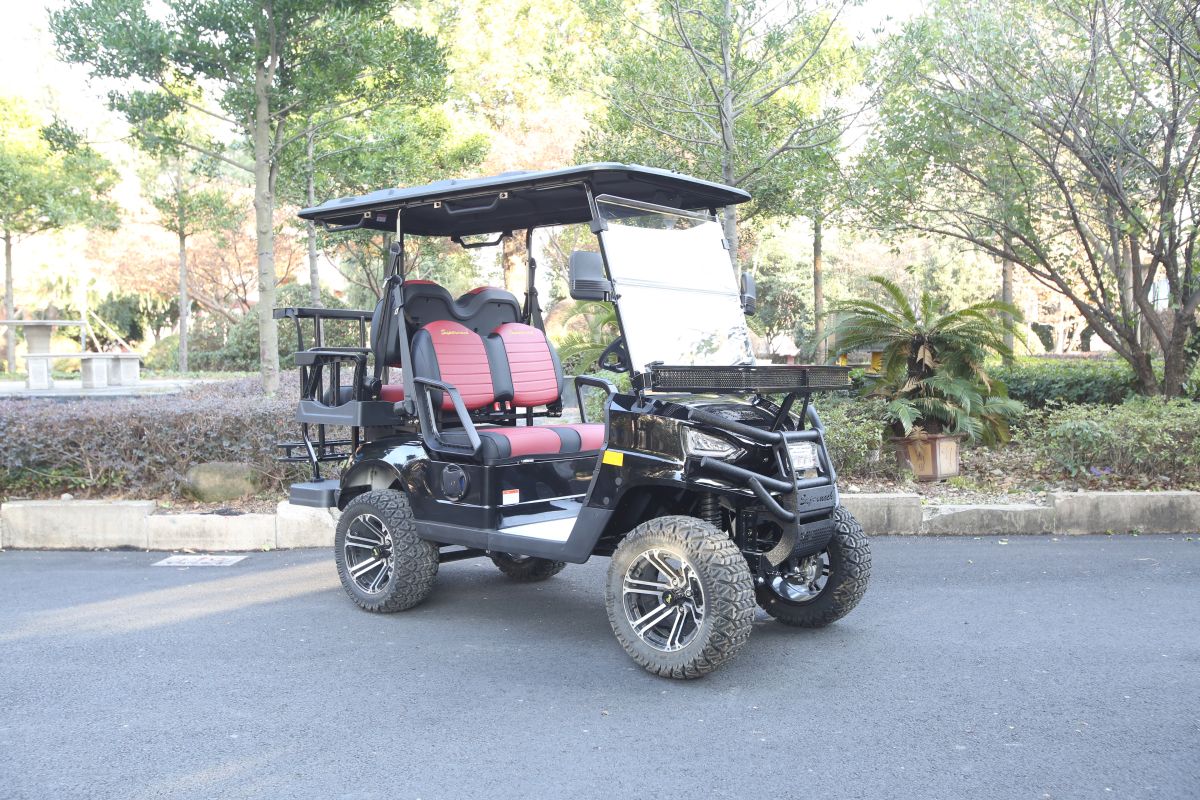

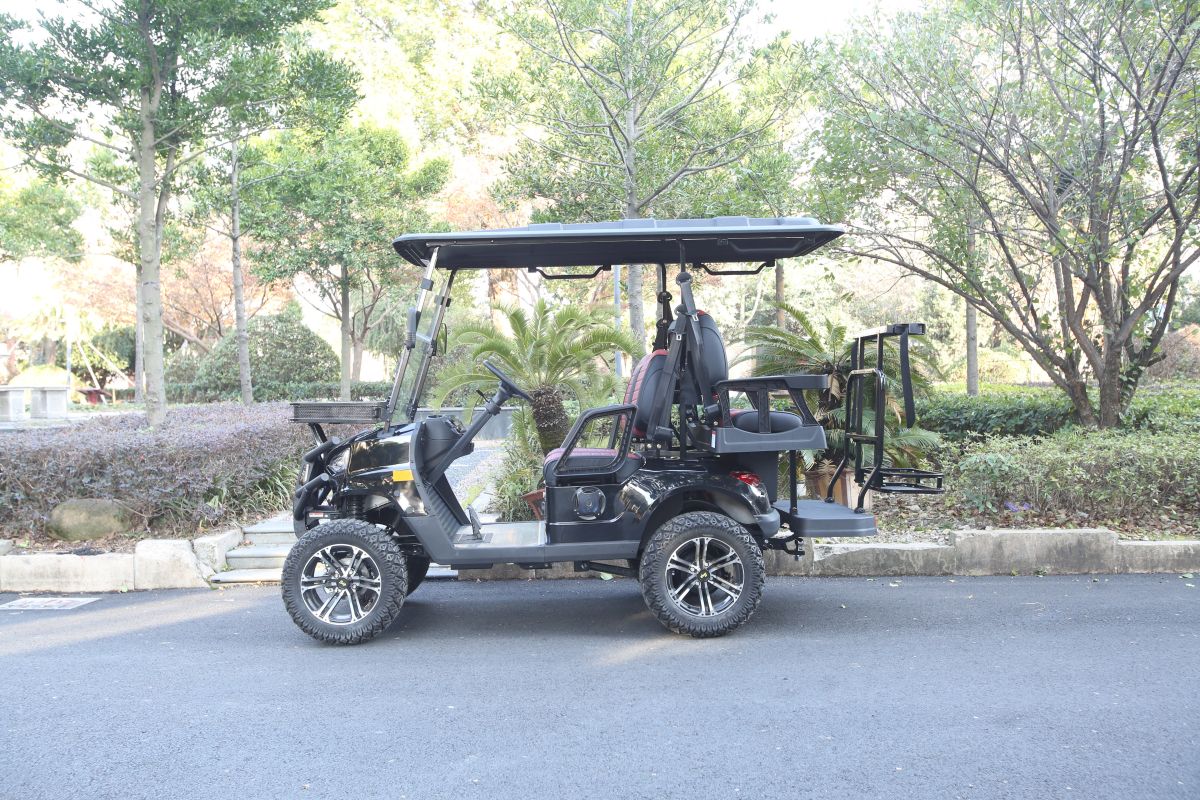

Detail pictures

Production Process Flow

Material Inspection

Chassis Assembly

Front Suspension Assembly

Assembly Of Electrical Components

Cover Assembly

Tire Assembly

Offline Inspection

Test The Golf Cart

Packaging&Warehousing

Packing

RFQ

Q1. What is your warranty term?

Answer: We provide1 year warranty for engine except fast worn parts . And for any failed part under warranty, if it can be repaired at your side and the repair cost is lower than the valve of the part, we will cover the repair cost; otherwise, we will send replacements and cover the freight cost if any.

Q2. Do you provide after service spare parts?

Answer: Yes, we provide all the spare parts to our vehicles. For your easier working to select the spare parts, we also supply parts manual.

Q3. Do you provide technical support?

Answer: Yes, we provide technical support by email and phone. If necessary, we can also send our engineer to your place.

Q4. Do you provide vehicle assembly service if we buy the vehicles in SKD or CKD way?

Answer: When the vehicle is in SKD way, the reassembly is just bolt and nut work, it is not difficult at all. Unless you have the assembly capability, we do not sell the vehicles in CKD way. If you do have bigger volume, we can send our people to give instructions.
